Fly Farther, Faster

Portable Beyond Visual Line of Sight Radar System

A Transport Canada approved DAA solution for BVLOS RPAS.

A Transport Canada approved detect and avoid (DAA) solution for BVLOS RPAS Operations.
Sparrowhawk is a ground-based radar complimented with ADS-B that enables effective small aircraft detection. It provides an integrated airspace picture allowing RPAS Operators to safely fulfill their operations.

Read the Story

Sparrowhawk provides the situational awareness to open up an exponential increase in area coverage from visual line of sight operations. A single radar enables 1400 square kilometres for operations.

Portable - Go anywhere with a portable system that can be installed on a mid-sized vehicle.

Price - Far less expensive than large permanent structures which offer limited capabilities.

Permits - The only company with BVLOS certification in Canada and beyond.

Take your operation to the next level

DDA Systems

Need text

Expanded Surveillance

Need text

Full System Integration

Need text

Client Management

Need text

Situational Awareness

The key to extracting the true capability of unmanned systems is through extended range. Sparrowhawk provides the situational awareness to open up an exponential increase in area coverage from visual line of sight operations. A single radar enables 1400 square kilometres for operations.

Sparrowhawk paved the way for Canadian UAVs to obtain Special Flight Operations Certificates (SFOCs) from Transport Canada for Beyond Visual Line of Sight (BVLOS) RPAS Operations anywhere in Canadian Class G airspace up to 800 feet above ground level.

Clients Testimonial

Serving Drone Operations Across North America

"Tasker is key asset for my day to day, as it has helped streamline my inventory management allowing me to stay on top of quantities and knowing what we have more effectively. It is also a helpful organization tool for me to plan missions while assigning specific tasks to team members for our flight preparations. Tasker keeps track of pilot flight hours and maintenance schedules which gives me friendly reminders to make sure our equipment is in top condition and pilots are current for future operations."

Active Commercial Services User

"A system designed by RPAS operators, for RPAS operators"Tasker makes managing an RPAS organization easy. It helps you manage all the non-flying aspects of your organization which enables the timely, safe and compliant operation of your RPAS. Whether it’s fleet management, maintenance or crew scheduling Tasker will help those parts of the organization run smoother to let you focus on flying."

Active Military Team User

Get Started

Tasker Software for Drone Operations provides everything needed to keep your operations running smoothly, synchronizing all the information required in one place.

Frequently Asked Question

How do I buy a Sparrowhawk Radar?

Sparrowhawk is commercially available NOW and can be purchased by using the Contact Us form and selecting Sparrowhawk.

Contact Us
How much does Sparrowhawk cost?

The Manufacturers Suggested Retail Price (MSRP) of Sparrowhawk is $180,000.  A complete system comes with radar hardware, a Software-Defined Radio (SDR) dongle and ADS-B antenna to process ADS-B (1090 MHz) data, airspace management software to process and visualize the airspace of interest, and API for RPAS system integration into the airspace picture.  Training, installation support, and 1 year of customer support is also included. Contact us for specific configuration pricing for your application.

Sales commence with a 25% deposit with the remainder amount due 30 days after system delivery.

Are there any recurring or annual fees associated with Sparrowhawk?

There are no mandatory recurring fees associated with Sparrowhawk.  The system you purchase will continue to function beyond the first year in the same capacity.To maintain product support, software updates and online data storage, an annual fee of $18,000 (10%), is charged for the continuation of these services.  Sparrowhawk generates a lot of data when operating, and this data is stored online in the cloud for remote access.  Without the ongoing product support, online data storage will be discontinued.  Local data storage and remote access will continue to function.It should be noted that major product improvements continue to be offered as part of the product update subscription.  In the past, we have increased range by 50%, and built in multi-radar networking.  These improvements are all included as part of your subscription.

Contact Us
Why not just use ADS-B?

ADS-B is not mandated world-wide. Further, it is not always reliable and can even be switched off. In our testing, almost half of “industrial and private” air traffic does not use ADS-B (in Canada). This creates a massive safety hole. Sparrowhawk does use ADS-B, but does not solely depend on it. It is used to assess radar performance over time.

Why is Sparrowhawk only a 2D Radar?

Sparrowhawk has a beam height which tracks aircraft up to an altitude of 6000 ft AGL and up to a range of 12 NM. Air traffic flying beyond that altitude typically have ADS-B, and that is reported through Sparrowhawk. The remaining tracks are typically lower flyers and necessitate some form of consideration and possible remedial action on the part of the operator. Processes and procedures by the pilot can take action with flyers that encroach your airspace (i.e. contact on radio or descend temporarily)

Can I integrate Sparrowhawk into my own GCS?

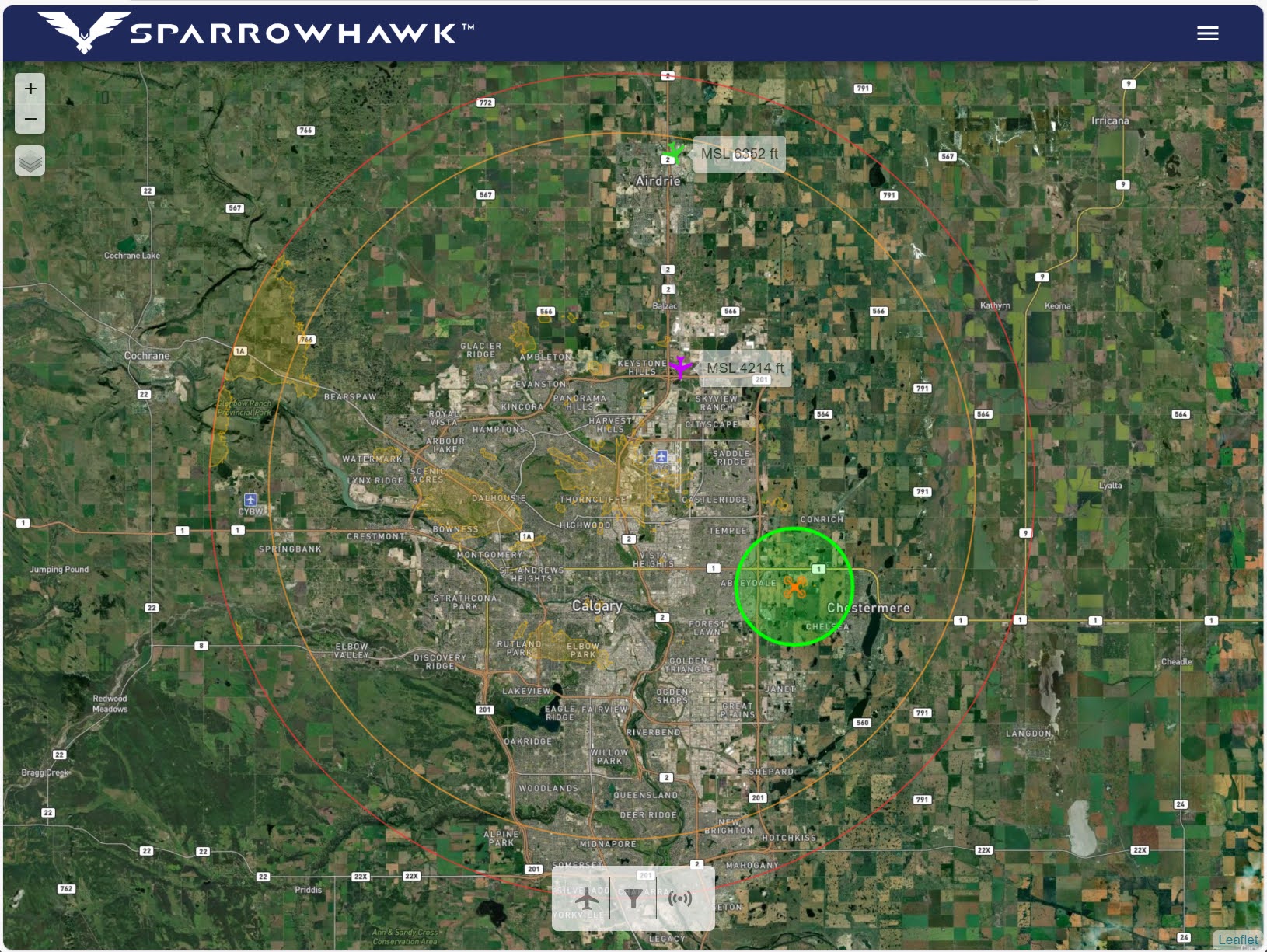

Sparrowhawk is configured to receive your RPAS information and present it on the VCSi Airspace user interface. You can develop interfaces to your own GCS to publish Sparrowhawk airspace detections there.

Is Sparrowhawk subject to ITAR regulations?

No.  Sparrowhawk is commercially available and not subject to ITAR or Canadian Controlled Goods.

Can Sparrowhawk be paired with other DAA systems?

Yes. Sparrowhawk architecture allows for its data to be forwarded to other software solutions. The major advantage of Sparrowhawk is that it works in varied environmental conditions (cloudy, light rain, at night). It provides 360 degree coverage and does not require aircraft hardware modification.

Safety compliance in your jurisdiction will dictate the level of confidence needed for your application. The size of aircraft, type of aircraft, on-board recovery systems, jurisdiction of operation, population density, airspace complexity and other factors will determine your solution. Sparrowhawk can be a key piece of the puzzle.

Does Sparrowhawk track things other than aircraft?

Sparrowhawk analyses every raw radar reflection generated within its range and the resulting picture provides an assortment of detections: moving vehicles, birds, drones, aircraft, weather (snow, rain, fog, smoke) and ground clutter.

Sparrowhawk is tuned to optimally extract what it believes to be air traffic.

How do I go about getting regulator approval to fly BVLOS?

Approval to fly BVLOS, is only about half based on your DAA solution. The rest is based on the aviation processes of your company, the aircraft you fly, and where you want to fly it. Sparrowhawk can provide the data to your regulator to ensure you can check that box when properly integrated into your processes. We have a technical data supplement manual which we have used with BVLOS applications that is intended to assist with your application.

Proving your pedigree to the regulator is your responsibility, but we will assist in sharing the DAA component. Transport Canada has provided Canadian UAVs with a nation wide BVLOS Special Flight Operations Certificate which allows for flight in Canada.

How does Sparrowhawk support special operational risk assessments?

Understanding SORA is a typical mechanism to prove your understanding of safety for your BVLOS flights. SORA introduces the term “Air Risk Class” (ARC) which classifies airspace and ground space based on the risks associated with flying there.

Sparrowhawk is a key piece of Canadian UAVs' solution in Canada where they received approval from Transport Canada to fly <25 kg RPAS in Canadian skies out to 8 NM from the radar for ARC-B and 6.5 NM in ARC-C. To date we have achieved a Specific Assurance and Integrity Level (SAIL) of 4 in our operations.

How long does it take to deliver a Sparrowhawk?

When in stock, delivery of a single Sparrowhawk is 4-6 weeks from receipt of deposit.

Contact Us
I need to cover more range than noted. Is there a way to achieve this with Sparrowhawk?

Historically, Sparrowhawk has been rated to a maximum range of 8 NM or 14.8 km. This range is increasing in 2024 due to hardware and software upgrades to 12 NM. Further, networking of multiple Sparrowhawks is a planned improvement. Contact us for more information. Note that ADS-B typically operate to ranges beyond 100 NM.

Can I deploy more than 1 Sparrowhawk to increase my probability of detection?

Deploying more than 1 radar to a region and positioning them in different locations is likely to increase detection of flyers in the region; however, Sparrowhawk currently does not include the capability of merging detection and interpretations from 2 or more radars into one view. Networked radar capability is planned for release in early 2025.

Will Sparrowhawk work in mountainous terrain?

The primary limitation of any ground-based radar is placement of the equipment. Radar effectiveness depends on two things – line of sight to target, and prevailing ground clutter. Radar can only detect what it can directly observe from the radiating antenna, to the target. As such, the placement of the Sparrowhawk, on the ground, must be free from major blockages in the area of interest. Further, if you are in mountainous terrain, there will be blind spots in valleys and blockages from hills. Tools are provided with Sparrowhawk for you to pre-assess locations worldwide. This preview capability is roughly 80% accurate to reality.

Does Sparrowhawk have increased range when mounted on a tall structure?

Through extensive testing, we have found that ground-based radar works best when installed at the approximate height of the prevailing obstacles. For example it works best close to the ground in flat prairie, at tree height when in a forest, and at building height when in a dense city. When the radar is installed significantly higher than the surrounding landscape we see improved detections at max range, but more clutter at intermediate ranges.

Can I mount Sparrowhawk on a mobile vehicle?

Sparrowhawk works well when mounted to a van or trailer, however the vehicle must be stationary during operation and level. At time of setup, the user calibrates the radar position and heading, is able to setup that up within a few minutes. Positioning of Sparrowhawk remains a critical factor for performance, but the advantage of placing Sparrowhawk on a transportable platform is that several locations can be tried before a BVLOS flight is commenced.

What kind of permissions or permits do I need to operate a Sparrowhawk?

Prior to turning on a Sparrowhawk, you require a spectrum permit from the relevant authority for using radar equipment due to the utilization of radio frequencies. This varies by country.

USA
Sparrowhawk is ALREADY approved in the United States by the FCC so no additional permits are needed. This is achieved through certification on FCC Part 80 (land use) and FCC Part 90 (maritime use).

Canada
Sparrowhawk requires a radio site license from ISED to be used. This is a straight forward application with a cost under $100. We often select regions as opposed to specific coordinates. Approval has always come within weeks.

To conduct BVLOS RPAS operations using Sparrowhawk, you will require an operational flight permit from your jurisdiction. In Canada this is referred to as a Special Flight Operations Certificate (SFOC). In the US this is referred to as a Part 107 Waiver. When purchasing a Sparrowhawk, we will supply all the technical data related to the Sparrowhawk “Detect and Avoid” system which will be needed for these applications. Sparrowhawk has previously been approved for BVLOS use in Canada, and approvals in the US are pending review.

United Kingdom
Sparrowhawk requires a radio license from OFCOM for X Band in the region used. These licenses have been received for Sparrowhawk in the past.

If you are from a different jurisdiction, we are willing to work with you as part of our beta program to get Sparrowhawk approved in your country.

Contact Us
How many targets can Sparrowhawk track at one time?

There is no pre-determined limit on the number of targets the system can concurrently track. The way Sparrowhawk processes data is not affected by the number of targets, however if targets become too congested Sparrowhawk loses the ability to differentiate between tracks in the same way a human operator can become overwhelmed. Sparrowhawk has a feature to track the “fingerprint” of an airspace over time.  This means that if you deploy Sparrowhawk for several days or weeks it can create heat-map of where traffic is the most dense. This assists when conducting mission planning in congested airspace.

What is the accuracy of tracked targets?

Sparrowhawk has a horizontal positioning root mean square error (RMSE) of 110 m. This error is based upon the horizontal beamwidth of the radar itself. This beam width is 1 degree with 4000 pulses per rotation. Sparrowhawk can also track targets up to 6000 feet with a vertical beam height of 11 degrees from horizontal. Note that targets at extremely high altitudes can often be tracked at great distance through side-lobes, but they introduce positional geometric error when projected to the ground.

How does Sparrowhawk offer avoidance within a DAA System?

Sparrowhawk obviously offers the detect portion of a DAA. However, within the GUI presentation layer, there also exists the ability to upload the particular performance characteristics of your drone. From this data, the Sparrowhawk map display shows a keep out zone around all tracked targets.  These keep out zones move with the target, and if there is a pending violation of your drone into any keep out zone, a warning and a count-down is triggered for pilot remediation.

Sparrowhawk leaves a pilot with the ultimate authority for avoidance maneuvers, but Sparrowhawk will make violations extremely evident.In the sample video below, a real manned aircraft is flying pre-determined maneuvers to test Sparrowhawk in real-time. A simulated drone is inserted into the mission, and this triggers warnings. Note: this is very disturbing to pilots

How does Sparrowhawk installed? What are the mounting options?

Sparrowhawk weighs  80 lbs, and mounts through 4 stainless steel bolts to a surface.  It needs to be mounted on a relatively flat surface, but it can be metal, wood, fiberglass or other wise. So long as the rotating antenna is free from obstructions, it is fine. Installation is more based on visibility than physical mounts. While possible to mount on a tower, it is more ideal to mount it lower to avoid wind load. Mounting higher is only needed to overcome nearby obstacles. Sparrowhawk also has a processing unit which should reside inside with the laptop.

What is the ongoing maintenance costs of a Sparrowhawk?

Being a marine radar, Sparrowhawk is very robust and used to bad weather, g-forces, and extended operation. It is rated from -25°C to +55°C. Solid state variants of Sparrowhawk can run from 5-10 years without needing maintenance. General maintenance can include new rotating motors at a cost around $1000 or a new magnetron for under $2000 (5000 hour life). Our first ever Sparrowhawk has been running trouble free since 2016.

If I mount Sparrowhawk to a vehicle, can I drive from place to place without removing it?

Yes, if the antenna is properly supported, it can remain in place when driving. We leave our radar installed on vans and trailers permanently, including driving across North America many times. We can show you how best to support your antenna radiator for a long life.

Can Sparrowhawk track my drone?

Currently, Sparrowhawk is not tuned to track drones. However, it is very likely it will track your drone periodically throughout its flight. To prevent the system from triggering warnings, you can publish the location of your drone such that Sparrowhawk does not alert you to its presence. In practice, we can routinely track our 4lb fixed wing drone, but the tracking is intermittent.

What happens if Sparrowhawk cannot effectively work for my application?

Each Sparrowhawk comes with a performance specification certificate which shows what it was tested to achieve.  For example, 70% tracking of a small aircraft(Cessna-172 / RV-10) for a range of 1.5 NM to 7.5 NM and altitude of 100 ft to 6000 ft AGL.  Sparrowhawk also processes ADS-B data to assess radar track accuracy and coverage.

Radar placement is key for a successful operational deployment. Like all radio waves, Radar depends on having line of sight to target so that the target may reflect a portion of energy back to achieve detection. If the target flies behind trees or other obstructions it may be lost, and that introduces some level of variability to tracking targets of interest.

Sparrowhawk come with software tools aid deployment of radar at locations of interest, and that is roughly 80% - 90% accurate to reality. The best fix for a bad site is moving the radar. It’s for this reason that we recommend mobile installations. There is almost no cure for a fixed radar installation that generates a substantial amount of ground clutter or line of sight issues. As such, our performance specifications are based on effective installation, which is part of our training program. So the effective answer for this question is “move the radar”.
